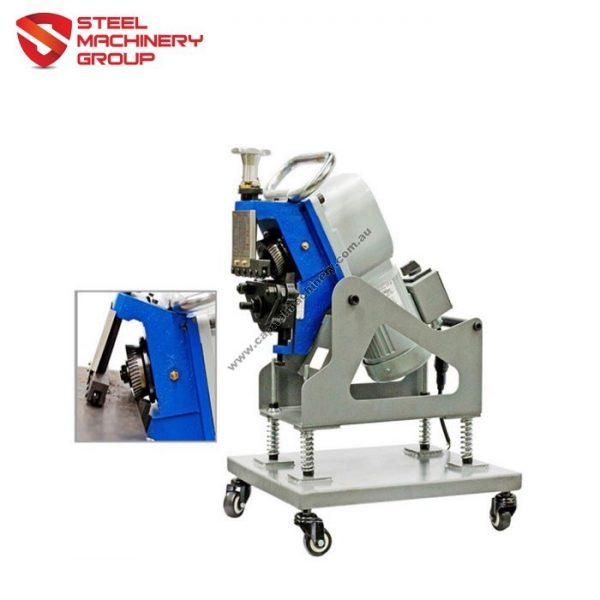

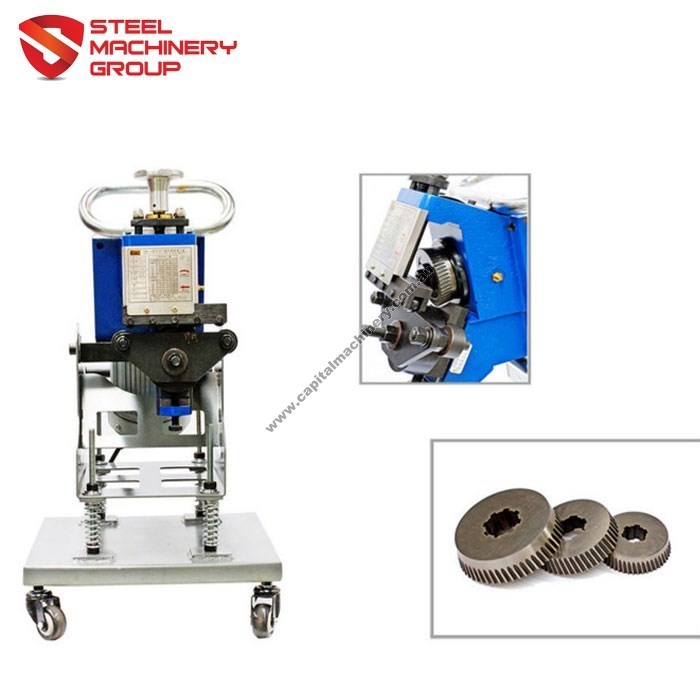

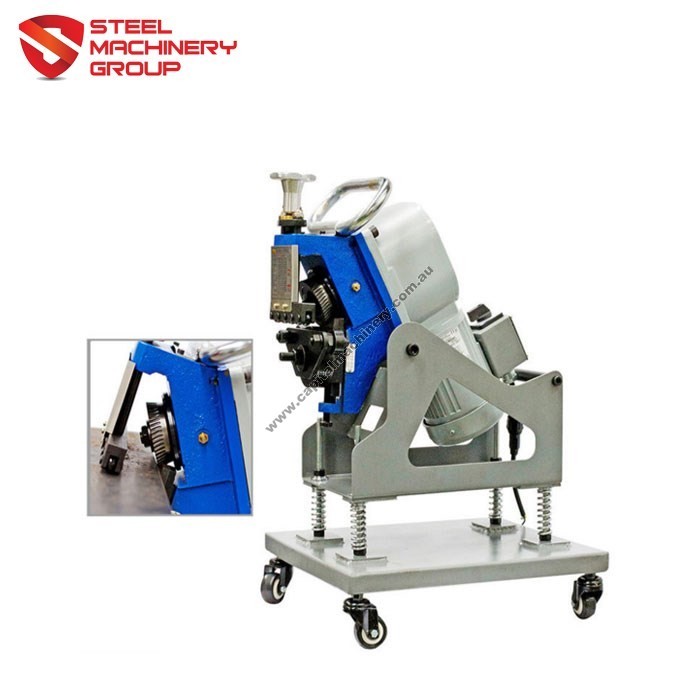

SMG Portable Automatic Plate Beveler
The Portable Automatic Plate Beveler is designed to be efficient in terms of work process. It is able to provide high-quality results, adaptable for different plate specifications and maneuverability inside and outside your workshop. Steel Machinery Group has a wide variety of plate beveling machine to choose from. We provide top-quality product solutions for steel fabrication industry.

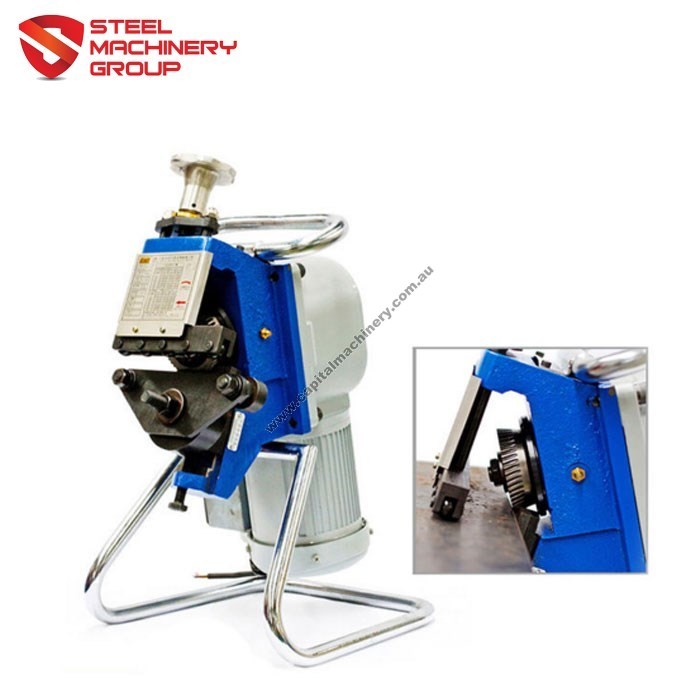

SMG-6D Beveling Machine is a portable, handheld machine designed for for plate edge and pipe end beveling. Clamp thickness in a range of 4 -16mm, bevel angle regularly 25 / 30 / 37.5 / 45 degrees as per Customer’s requirements. This machine performs cold cutting and beveling with high efficiency and can reach 1.2 – 2 min. per minute.
Specifications
| Model NO. | SMG-6D or 6D-T Portable Beveling Machine |
| Power Supply | AC 415V 50HZ |
| Total Power | 400W |
| Motor Speed | 1450r/min |
| Feed Speed | 1.2-2metesr/min |
| Clamp Thickness | 4-16mm |
| Clamp Width | ＞55mm |
| Process Length | ＞50mm |
| Bevel Angel | 25 / 30 /37.5 /45 degree as customer’s require |
| Single Bevel Width | 6mm |
| Bevel Width | 0-8mm |
| Cutter Plate | φ 78mm |
| Cutter QTY | 1pc |
| Worktable Height | 460mm |
| Floor Space | 400*400mm |
| Weight | N.W 33KGS G.W 55KGS |
| Weight with Car | N.W 39KGS G.W 60KGS |
Note: Standard Machine includes:
- 3 pcs cutter
- bevel angle adapter
- Tools in case
- Manual Operation
Features
- Available for material: Carbon steel, stainless steel, aluminium etc
- Available for Both metal plate and pipes
- IE3 Standard motor at 400w
- Hight Efficiency can reach up to 1.2-2meter /min
- Imported gearbox for cold cutting and non-oxidation
- No Scrap Iron Splash, More safe
- Portable at low weight only 33kgs
